Redefining IoT Monitoring and Control
IoT Controller
Autonomous Operation
Flexible Cloud Integration
LoRaWAN® or 4G LTE Communication
Rich Industrial Interfaces
Temperature Transmitter
Intelligent Trigger System
Reimagine Remote Monitoring and Control

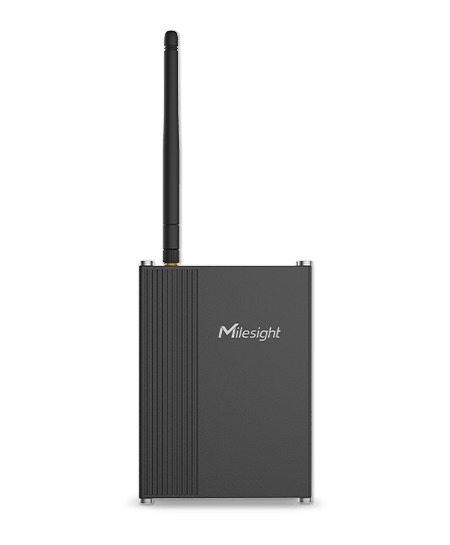

Milesight UC300 IoT Controller is the perfect solution for remote monitoring and control. With rich interfaces, cloud compatibility, and a built-in IF-THEN Command system, it’s your ideal choice for various applications
Expanded RS485 Interface Connectivity
The RS485 interface of the UC300 allows for connectivity with 32 channels, enabling the connection of 32 field sensors or devices. This feature establishes the UC300 as a central hub for comprehensive sensor data management and industrial IoT automation
Note: The cellular version currently supports only 16 channels
Temperature Transmitter
Besides the 4~20 mA & 0~10 V type analog interfaces, the UC300 firstly adopts 2 RTD inputs for accepting and converting 2/3 wires PT100 sensors’ resistance signal into 4-20 mA current signal with a range from -200°C to 800°C
Intelligent Trigger System
Users are able to set up 16 commands based on custom trigger conditions & actions to realize intelligent tasks like timing data collection
Autonomous Operation
Milesight UC300 IoT controller can execute the commands autonomously even when the network is unavailable
LoRaWAN® & 4G LTE
The UC300 IoT Controller supports global LoRaWAN® frequency plans or 4G LTE as backhaul connectivity to meet different projects
Flexible Cloud Integration
Support TCP/UDP/MQTT protocol, UC300 IoT controller is compatible with multiple Cloud platforms such as AWS (for cellular version only) and Milesight IoT Cloud

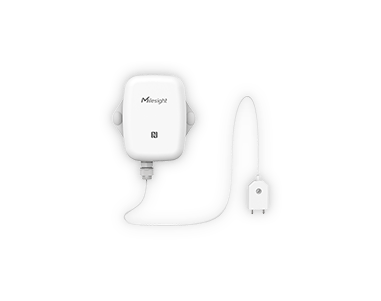

Immediate Warning Against Water Damage
Communicate with other Milesight LoRaWAN® node devices without a LoRaWAN® gateway
