حسگر هوشمند ۹ کاره برای هوای پاک و مطمئن



همه‌چیز رو درباره محیطت بدون، بدون حدس و گمان



۹ حسگر در یک دستگاه: از دما و CO2 تا ذرات معلق

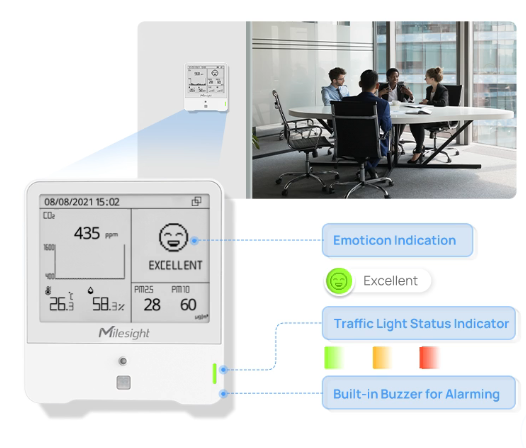

چراغ وضعیت و زنگ هشدار: کیفیت هوا رو تو یه نگاه چک کن

محافظت ضدسرقت: بدون دغدغه، هر جا که بخوای

شکلک‌های جذاب: وضعیت محیط رو با یه حس خوب ببین

تغذیه با USB Type-C (AM319): همیشه آماده و روشن

تطابق با استاندارد WELL: برای محیط‌هایی سالم‌تر

هوای پاک و راحتی بیشتر با صرفه‌جویی هوشمند

حسگر AM319 با پایش دما، رطوبت، CO2، ذرات معلق و بیشتر، محیطت رو سالم و پر از حس خوب نگه می‌داره

Our Certified IAQ Sensors
Your Helps in WELL and IWBI Community

Milesight AM319 9-in-1 IAQ Sensor has officially earned the coveted Works with WELL mark.
“The Works with WELL program, introduced by IWBI earlier this year in response to the increasing demand for healthier building products and solutions, allows product manufacturers and service providers to validate and demonstrate how their offerings align with requirements in the WELL Building Standard (WELL).“ – IWBI

 WORKS WITH WELL is a trademark of International WELL Building Institute PBC and used by those product manufacturers granted permission by International WELL Building Institute (IWBI) following IWBI’s license criteria validation process.

هوای پاک برای کلاس‌های پرشور و فضاهای کاری

و مدارس کانادا، ۴۷,۰۰۰ حسگر Milesight هوای پاک رو برای دانش‌آموزا و معلم‌ها آوردن. حالا تصور کن تو کلاس‌های درس یا دفاتر شیک، این حسگر چه تحولی ایجاد می‌کنه. آماده‌ای این حس رو تجربه کنی؟

9Sensor in 1

Integrated 9 types of sensor to measure various ambience conditions

Higher Accuracy with Better Insulation Design

Placement for temperature and humidity sensors is designed to isolate the heat generated when the chip is operating.

Superior Sensor with Strong Anti-Interference

Selection for HCHO sensor is dedicated to stable reading, particularly in its resistance to alcohol.

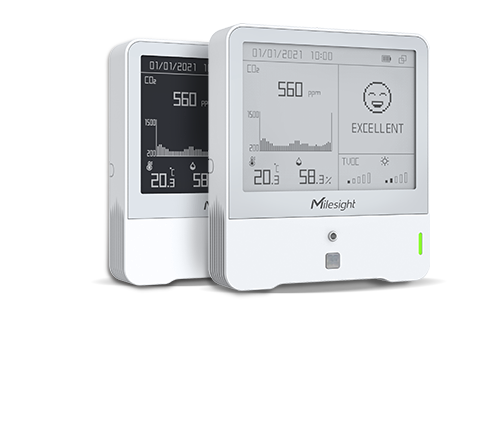

Optional 4.2 E-ink Screen for Various Scenarios

AM307/AM308/AM319
With E-ink Screen

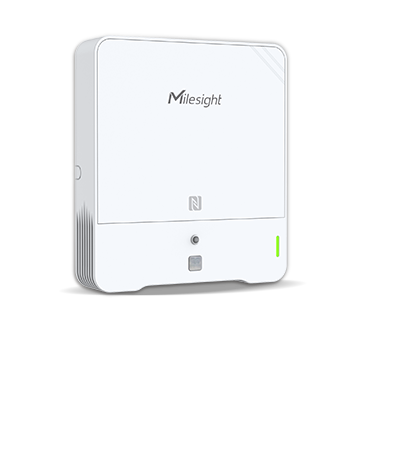

AM308L

Without E-ink Screen

Longer Battery Life

راحتی محیطت رو با یه نگاه ساده بشناس

دما، CO2 و کیفیت هوای داخلی رو لحظه‌ای ببین، مثل یه نسیم تازه تو فضات

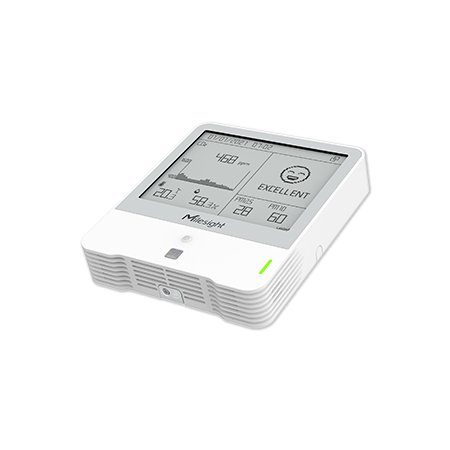

More Features with Bigger E-Ink Screen

AM307/AM308/AM319 equips with a 4.2-inch E-ink screen to show the real-time ambience conditions in many ways.

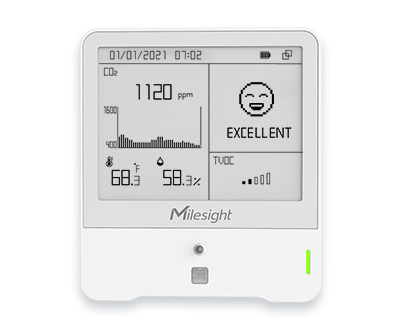

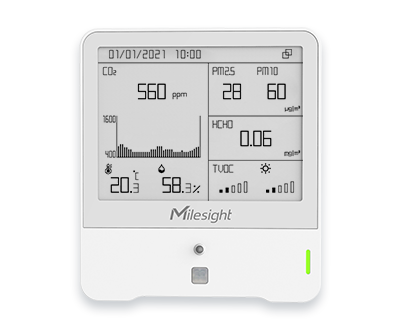

Multiple Display Styles

Light/Dark Color Theme

هوای پاک برای هر جا که نفس می‌کشی

ما کمکت می‌کنیم خونه، دفتر یا کلاس درس‌ت همیشه هوای سالم داشته باشه. با داده‌های لحظه‌ای AM319، کیفیت هوا رو مثل یه حرفه‌ای مدیریت کن

Smart Screen Mode for Energy-Saving Operations

When PIR value is 0 (Vacant) and last for 20 mins, the screen will stop updating to save power.

Multi-Year Battery Operation

4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries **AM307/AM308(L) can also be powered via Type-C.

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Strong Store Capacity of Historical Data Records

Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information.

Support Retransmission for Reliable Communication

With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally.

Milesight Development Platform

Application Integration and Development

Milesight Development Platform simplifies device deployment and management and offers RESTful APIs for data interchange, webhooks to trigger external actions, centralized management of applications, and comprehensive documentation for crafting custom IoT solutions, helping system integrators and solution providers jump-start IoT projects.

Related Products

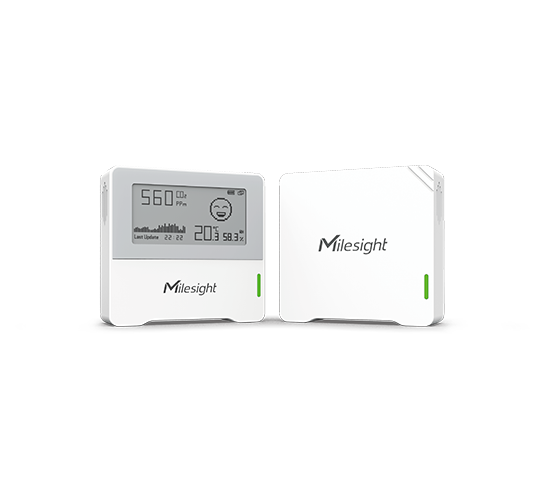

AM103
3-in-1 IAQ Sensor

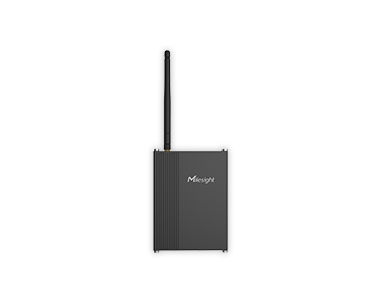

UC300
IoT Controller

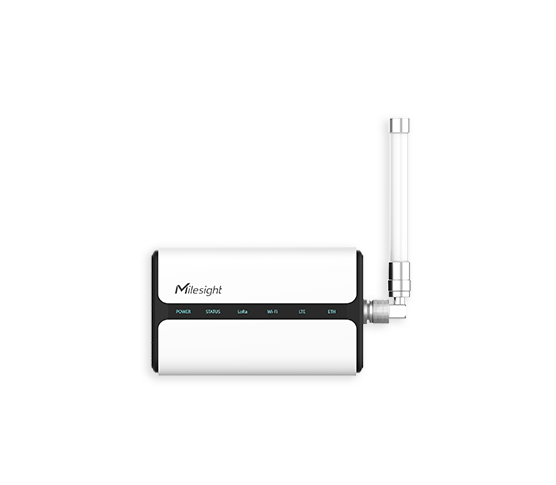

UG65
Indoor LoRaWAN® Gateway

Specifications
Wireless Transmission
Technology LoRaWAN®
Antenna Internal Antenna
Frequency CN470/RU864/IN865/<br>EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A
Sensors
Temperature -
Operating Principle Digital CMOSens® technology (MEMS)
Range -20°C~60°C
Accuracy ± 0.2°C
Resolution 0.1°C
Humidity -
Operating Principle Digital CMOSens® technology (MEMS)
Range 0% ~ 100% RH
Accuracy ± 2% RH
Resolution 0.5% RH
Motion -
Operating Principle Passive infrared (PIR)
Detection Range 80 ° Horizontal, 55 ° Vertical, 5m
Status Vacant/Occupied
Light -
Operating Principle Photodiode
Range 0-60000 Lux (Determine as 6 levels, 0-5)
TVOC -
Operating Principle MOX (MEMS)
Range1 1.00 ~ 5.00 (IAQ Rating)
Accuracy ±1
Resolution 0.01
Barometric Pressure -
Operating Principle Piezoresistive absolute pressure sensor (MEMS)
Range 260 - 1260 hPa
Accuracy ±0.5 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2) -
Operating Principle Nondispersive Infrared (NDIR)
Range 400 ~ 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
PM2.5 & PM10 -
Operating Principle -
Range -
Accuracy -
Resolution -
Other Interfaces
Display AM307 & AM308: 4.2-inch Black & White E-Ink Screen
Button 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
USB 1 × Type-C Port for Power Supply, Configuration or Console
Software
Configuration 1. Mobile App via NFC / 2. PC software via NFC or USB Type-C port / 3. DownlinkRegulatoryCE, FCC, ISED
Advanced Features Calibration, Threshold Alarm, Data Storage (18, 000 entries), Data Retrievability, Data Retransmission, Smart Screen Mode, Button Lock
Physical Characteristics
Power Supply 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life2 Around 1.3 Years (SF7, EU868 & US915)
(10 min interval, 25°C) Around 1.2 Years (SF10, EU868)
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Housing&Color ABS (UL94 HB), White
Weight 222.6g (With Batteries)
Dimension 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation Wall Mounting via 3M Tape or Screws
Approvals
Environmental RoHS
Specifications
Wireless Transmission
Technology LoRaWAN®
Antenna Internal Antenna
Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A
Sensors
Temperature -
Operating Principle Digital CMOSens® technology (MEMS)
Range -20°C~60°C
Accuracy ± 0.2°C
Resolution 0.1°C
Humidity -
Operating Principle Digital CMOSens® technology (MEMS)
Range 0% ~ 100% RH
Accuracy ± 2% RH
Resolution 0.5% RH
Motion -
Operating Principle Passive infrared (PIR)
Detection Range 80 ° Horizontal, 55 ° Vertical, 5m
Status Vacant/Occupied
Light -
Operating Principle Photodiode
Range 0-60000 Lux (Determine as 6 levels, 0-5)
TVOC -
Operating Principle MOX (MEMS)
Range1 1.00 ~ 5.00 (IAQ Rating)
Accuracy ±1
Resolution 0.01
Barometric Pressure -
Operating Principle Piezoresistive absolute pressure sensor (MEMS)
Range 260 - 1260 hPa
Accuracy ±0.5 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2) -
Operating Principle Nondispersive Infrared (NDIR)
Range 400 ~ 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
PM2.5 & PM10 -
Operating Principle Laser Scattering
Range 0 ~ 1000 μg/m3
Accuracy 0~100(±10μg/m3), 100~1000(±10 %) (-10°C~ 60°C)
Resolution 1 μg/m3
Other Interfaces
Display AM307 & AM308: 4.2-inch Black & White E-Ink Screen
Button 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
USB 1 × Type-C Port for Power Supply, Configuration or Console
Software
Configuration 1. Mobile App via NFC / 2. PC software via NFC or USB Type-C port / 3. DownlinkRegulatoryCE, FCC, ISED
Advanced Features Calibration, Threshold Alarm, Data Storage (18, 000 entries), Data Retrievability, Data Retransmission, Smart Screen Mode, Button Lock
Physical Characteristics
Power Supply 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life2 Around 1.3 Years (SF7, EU868 & US915)
(10 min interval, 25°C) Around 1.2 Years (SF10, EU868)
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Housing&Color ABS (UL94 HB), White
Weight 222.6g (With Batteries)
Dimension 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation Wall Mounting via 3M Tape or Screws
Approvals
Environmental RoHS
Specifications
Wireless Transmission
Technology LoRaWAN®
Antenna Internal Antennas
Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class C
Sensors
Temperature -
Operating Principle Digital CMOSens® technology (MEMS)
Range -20°C~60°C
Accuracy ± 0.2°C
Resolution 0.1°C
Humidity -
Operating Principle Digital CMOSens® technology (MEMS)
Range 0% ~ 100% RH
Accuracy ± 2% RH
Resolution 0.5% RH
Motion -
Operating Principle Passive infrared (PIR)
Detection Range 80 ° Horizontal, 55 ° Vertical, 5m
Status Vacant/Occupied
Light -
Operating Principle Photodiode
Range 0-60000 Lux (Determine as 6 levels, 0-5)
TVOC -
Operating Principle MOX (MEMS)
Range1 1.00 ~ 5.00 (IAQ Rating)
Accuracy ±1
Resolution 0.01
Barometric Pressure -
Operating Principle Piezoresistive absolute pressure sensor (MEMS)
Range 260 - 1260 hPa
Accuracy ±0.5 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2) -
Operating Principle Photoacoustic
Range 400 ~ 2000 ppm
Accuracy ± (50 ppm + 5 % of reading) (-10°C~ 60°C)
Resolution 1 ppm
PM2.5 & PM10 -
Operating Principle Laser Scattering
Range 0 ~ 1000 μg/m3
Accuracy 0~100(±10μg/m3), 100~1000(±10 %) (-10°C~ 60°C)
Resolution 1 μg/m3
Other Interfaces
Display AM307 & AM308: 4.2-inch Black & White E-Ink Screen
Button 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
USB 1 × Type-C Port for Power Supply, Configuration or Console
Software
Configuration 1. Mobile App via NFC 2. PC software via NFC or USB Type-C port 3. Downlink
Advanced Features Calibration, Threshold Alarm, Data Storage (18, 000 entries), Data Retrievability, Data Retransmission, Smart Screen Mode, Button Lock
Physical Characteristics
Power Supply 5V/1A by Type-C Port
Ingress Protection IP30
Relative Humidity 10% - 90% (non-condensing)
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Housing&Color ABS (UL94 HB), White
Weight 222.6g (With Batteries)
Dimension 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation Wall Mounting via 3M Tape or Screws
Approvals
Environmental RoHS
