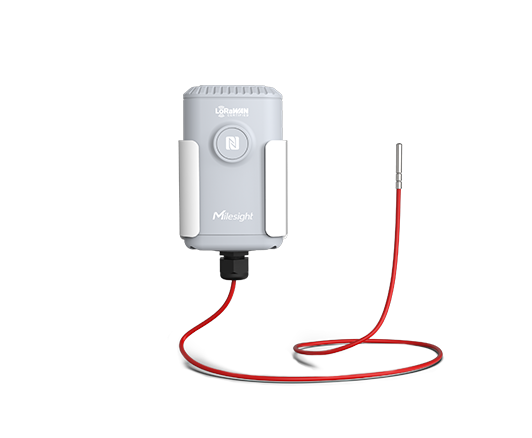

Platinum Temperature Sensor

Industrial Temp Checks: Job Done Better



10 Years Long Battery Life

Milesight IoT Cloud

NFC Configuration

Stable and Precise Temperature Measurement

LoRaWAN® Wireless Deployment

Impressive Resistance

Ensuring Safety by Getting Temperature Checks

The platinum-made sensor offers high temperature measuring accuracy on industrial equipment that enhances temperature monitoring precision to ensure safety

Stable and Precise Temperature Measurement

Produced with precious platinum material that offers exceptional temperature resistance, it allows stable precise temperature measurement performance even with extreme heat. The device can withstand extreme temperature ranges, from freezing -200°C to molten-hot 800°C, making it a superb sensing device for an extensive range of applications, ranging from industrial factories to experiment labs

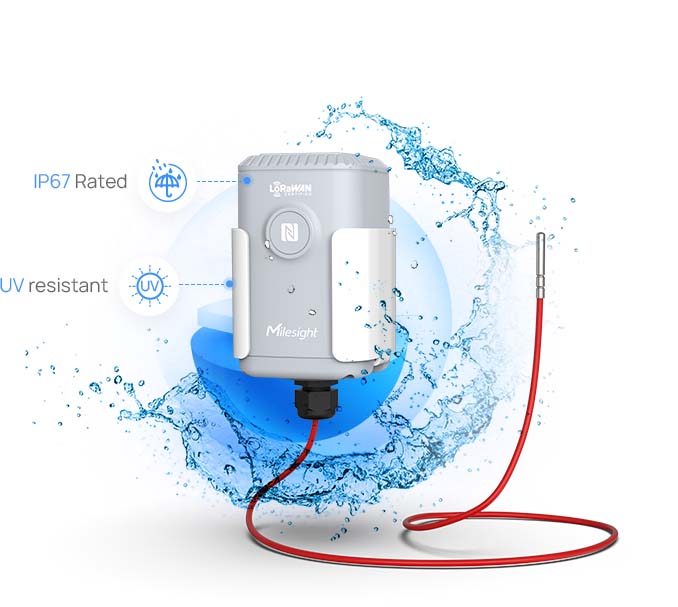

Impressive Resistance

The device is flaunt with an impressive IP67 rated water resistant performance, UV resistant, and vibration resistant. This enables it to thrive even under scorching sun and great downpours, including vibrations from operating industrial equipment, offering high measuring accuracy even in harsh working environments. The device is ideal for scenarios that requires stringent temperature measuring accuracy

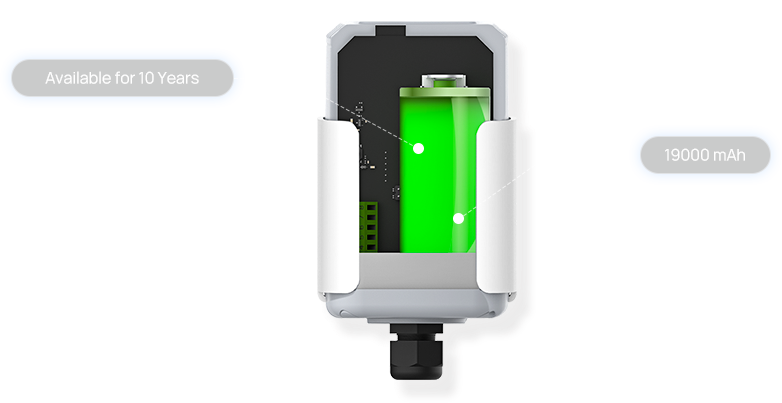

10 Years Long Battery Life

With a guaranteed low power consumption with LoRaWAN® technology, the battery can last up to 10 years with a 10-minute reporting cycle, making it ideal for various distinct scenarios

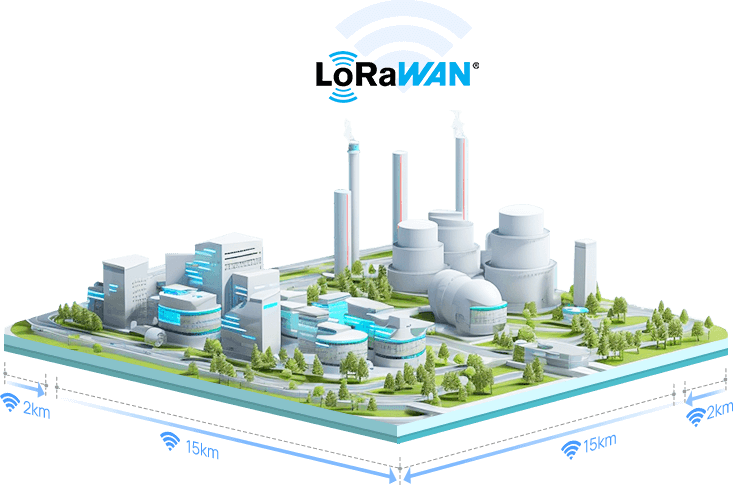

LoRaWAN® Wireless Deployment

The device employs LoRaWAN® technology that permits highly secured long-range wireless data transmission and guaranteed low power consumption, facilitating convenient and effortless installation process in various distinctive scenarios, making it the perfect device for industrial factories with complex surroundings

Related Products

EM500-PP

Pipe Pressure Sensor

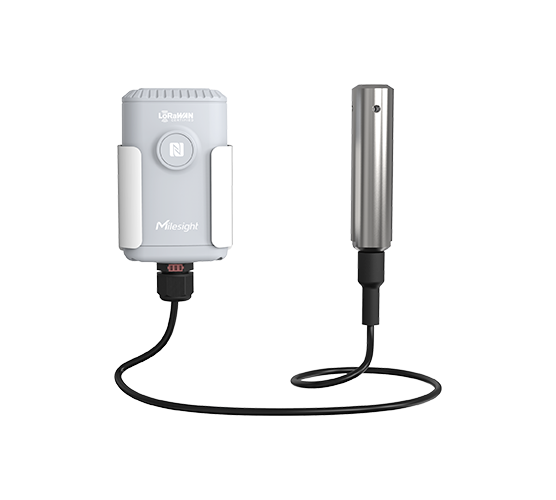

EM500-SWL

Submersible Water Level Sensor

EM500-PP

Pipe Pressure Sensor


Wireless Transmission
Technology LoRaWAN®, Milesight D2D
Antenna Internal Antenna
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm(868MHz)/20dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Measurement
Connection Type 3-wire connection
Range T050: -200 °C~50 °C T200: -50 °C~200 °C T500: -50 °C~500 °C T800: -50 °C~800 °C (Customizable from -200 °C~ 800 °C)
Accuracy For details, please refer to Datasheet.
Resolution 0.1°C
Others
LED 1 × LED Indicator (Interna1 × Reboot/Reset (Internal)l)
Button 1 × Power/Reset Button (Internal)
USB 1 × USB Type-C(Internal) for Configuration and Console
Software
Power On & Off NFC, power button (Internal)
Configuration Mobile App (via NFC), PC software(via USB Type-C), Downlink
Advanced Feature Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Change Alarm, Milesight D2D Controller
Transceiver Physical Characteristics
Power Supply 1 × 19000 mAh ER34615 Li-SOCL2 Battery
Battery Life* 10 years (10 min interval, 25 °C)
Operating Temperature -30°C~70°C
Relative Humidity 0% to 100% (non-condensing)
Ingress Protection IP67
Housing&Color ABS + PC, Grey
Weight 362.7g (With battery, mounting bracket and probe)
Dimension 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in)
Installation Pole, Wall or DIN Rail Mounting
Transceiver Physical Characteristics
Probe Type Straight tube (Customizable)
Cable Length 1.5 m (Customizable)
Installation Contact
Approvals
Regulatory CE, FCC, ISED, ICASA, Telec
Environmental RoHS

Documents

EM500-PT100 Datasheet

Firmware & SDK Download
