Temperature and Humidity Sensor

Monitoring with Reliable Data in Real-Time

Detect Temperature and Humidity with Higher Accuracy

Store Capacity with 2,800 Sets of Historical Data Records

Certified for EN12830 Standard

IP67 Rated and UV Resistance

Support Retransmission for Reliable Communication

Up to 10 Years Battery Life

Passage People Counting in A Cost-Effective Way

With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you track foot traffic in a cost-effective way.

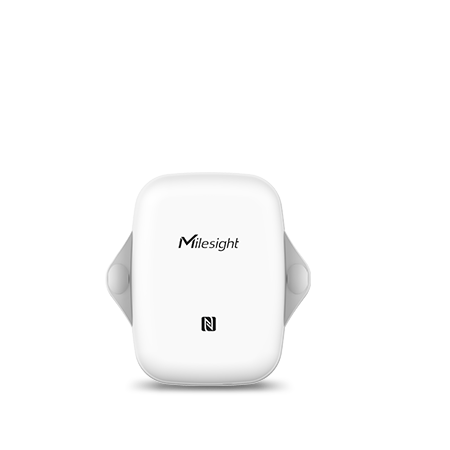

Industry-Proven Temperature & Humidity Sensor

EM300-TH is suitable for indoor and outdoor temperature and humidity monitoring. It can be widely used in office areas, greenhouses and other environments

Industrial Grade Design for Harsh Environment

IP67 Enclosure for Dust and Water Ingress
UV Resistance

Multi-Year Battery Operation

1 × ER18505 4000 mAh Li-SOCL2 ensure more than 5 years’ service life

Available for over 10 years (Dual Battery Holders, One Battery by Default)

Support Retransmission for Reliable Communication

With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally

Store Capacity with 2,800 Sets of Historical Data Records

Data can be stored in the device and cannot be manually deleted, further securing the traceability of the reported information

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Application Integration and Development

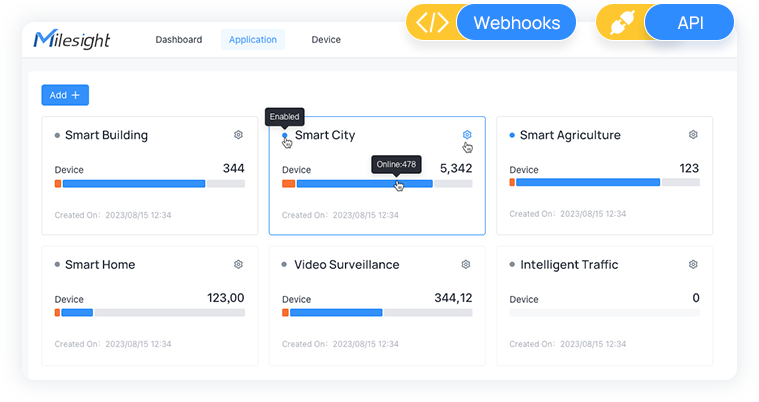

Milesight Development Platform simplifies device deployment and management and offers RESTful APIs for data interchange, webhooks to trigger external actions, centralized management of applications, and comprehensive documentation for crafting custom IoT solutions, helping system integrators and solution providers jump-start IoT projects

Cloud Data Management Milesight IoT Cloud

Data Visualization Dashboard
All figures in a glance
Automatic Triggers
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts
Data-based insights
Android & iOS App
Manage devices at your fingertips

Related Products

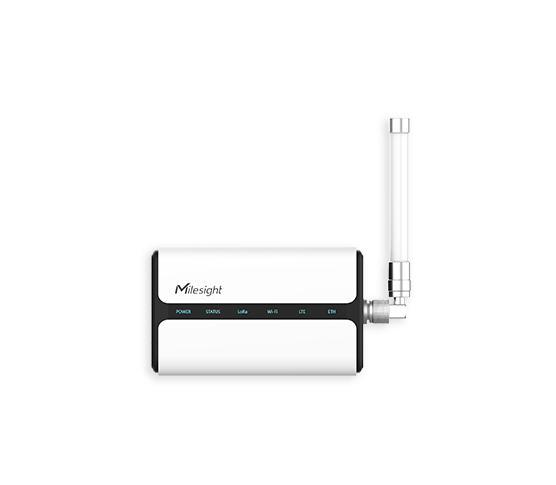

UG65

Indoor LoRaWAN® Gateway

EM320-TH

Temperature & Humidity Sensor

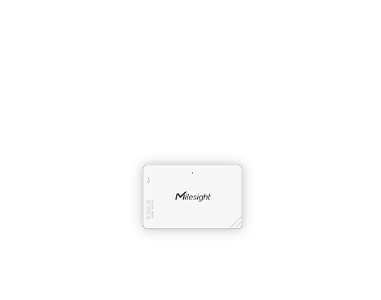

UC100

IoT Controller

Wireless Transmission
TechnologyLoRaWAN®, Milesight D2D
AntennaInternal Antenna
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm(868 MHz)/20dBm(915 MHz)/19dBm(470 MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Measurement
Temperature
Range-30°C to + 70°C
AccuracyTyp.:
±0.3°C (-30°C ~ 0°C)
±0.2°C (0°C ~ 70°C)
Resolution0.1°C
Humidity
Range0% to 100% RH
AccuracyTyp.:
±3% (10% ~ 90% RH @25°C)
±5% (0% ~ 10% RH @25°C, 90% ~ 100% RH @25°C )
Resolution0.5% RH
Others
DisplayLCD Segment Code Screen
Viewing Direction12 O'clock
Others
LED1 × LED Indicator (Internal)
Button1 × Power/Reset Button (Internal)
Software
Power On/OffNFC, Power Button (Internal)
ConfigurationNFC via Mobile App, Downlink
Advanced FeaturesThreshold Alarm, Milesight D2D Controller, Data Storage (2, 800 entries), Data Retransmission, Data Retrievability
Physical Characteristics
Power Supply1 × 4000 mAh ER18505 Li-SOCL2 Battery (8000 mAh Version Optional)
Battery Life*Over 10 Years (SF7, EU868 & US915)
(10 min interval, 25°C)Around 5.8 Years (SF10, EU868)
Around 4.2 Years (SF10, US915)
Operating Temperature-30°C to +70°C
Relative Humidity0% to 100% (non-condensing)
Housing & ColorABS + PC(Flame Retardant), White
Weight95.6g (with 1 battery)
Ingress ProtectionIP67
Dimension88.5 × 85.3 × 27 mm (3.48 × 3.36 × 1.06 in)
InstallationWall Screw Mounting, 3M Tape Mounting, Cable-Tie Mounting
Approvals
RegulatoryCE, FCC, Telec, EN12830
EnvironmentalRoHS

Documents

EM300-TH Datasheet

Firmware & SDK Download
