WS303 Mini Leak Detection Sensor

Stop Leaks, Avoid Further Damage



Up to 5 Years Battery Life with One Coin Cell Battery

Robust IP67 Waterproof Protection

Immediate Warning Locally and Remotely

Unique Milesight D2D Communication

Smart Water Leak Detection Solution

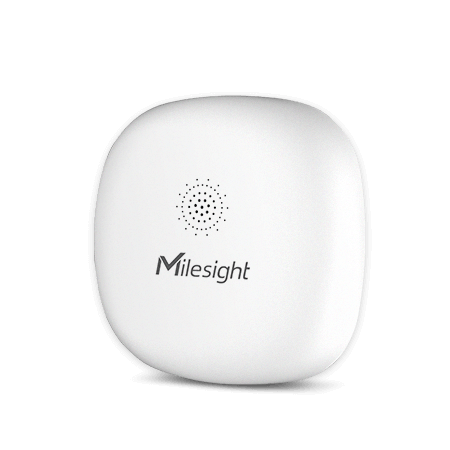

Introducing the WS303, a mini water leak detection sensor that detects the presence of leaks and raises alarms locally and remotely. With low power consumption, it can operate for 5 years on a single battery. It’s ideal for smart offices, buildings, houses, etc

Immediate Warning Against Water Damage

WS303 will sound an alarm and send a remote alert when water leak, water spillage, or floor wetness occurs

Sensitivity That Exceeds Expectations

The WS303 sensor uses water conductivity to detect a minimum water level of 0.5 mm by forming a circuit with two little metal probes. (Other conductive liquids are also supported)

Milesight D2D Communication

Milesight D2D (Device to Device) communication protocol featuring LoRa® enables the communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

Lower Latency

Secure Transmission

Reduce Investment Cost

Smart Restroom Solution

To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene

Power Failure Alarm

WS303 includes capacitor storage to trigger a power failure alarm

Group Counting

Ensuring Device Safety with Robust Protection

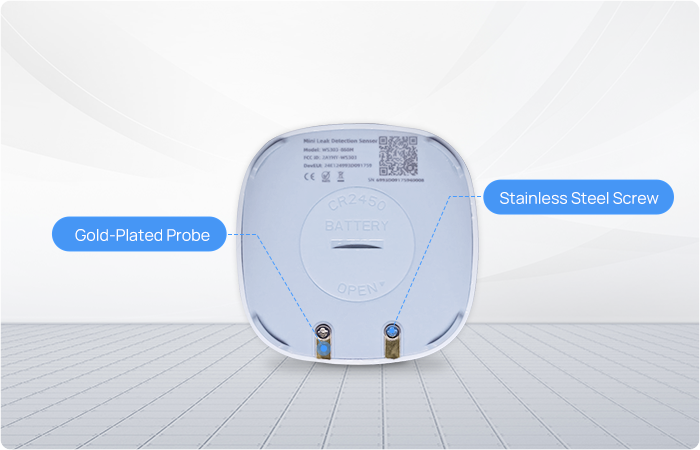

Utilizes gold-plated probes and stainless steel screws to prevent corrosion

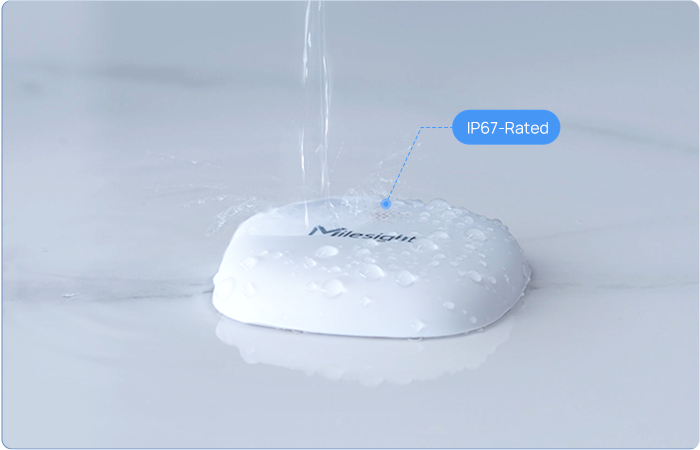

Equipped with IP67-rated enclosure to fit into more application scenarios

Group Counting

Ensuring Device Safety with Robust Protection

Utilizes gold-plated probes and stainless steel screws to prevent corrosion

Equipped with IP67-rated enclosure to fit into more application scenarios

Flexible and Effortless Installation

The compact design makes it easy to mount on a surface or wall as needed without wiring

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

Related Products

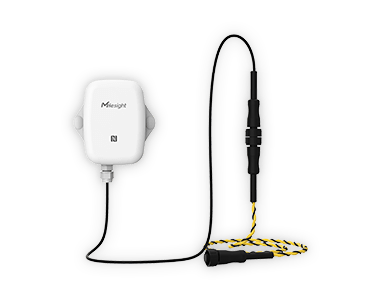

EM300-ZLD

Zone Water Leak Detector

EM300-SLD

Spot Water Leak Detector

Wireless Transmission
TechnologyLoRaWAN®, Milesight D2D
AntennaInternal Antenna
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Leakage Detection
Liquid TypeConductive Liquid
Trigger ConditionOnce Liquid Level Reaches 0.5mm
Others
BuzzerSupport
ConfigurationMobile App via NFC or Downlink
Advanced FeatureMilesight D2D Controller, Water Leakage Alarm
Software
ConfigurationNFC Configuration via Mobile App
Advanced FeaturesMilesight D2D Controller, Tamper Alarm, Open/Close Status Alarm
Physical Characteristics
Power Supply1 × 590mAh CR2450 Lithium Battery
Battery Life*Around 5.7 years (One hour leakage per week, 25°C)
Operating Temperature-10°C to +60°C
Relative Humidity0% to 100% (Non-condensing)
Ingress ProtectionIP67
ColorABS+PC, White
Weight36.4g (Battery included), 29.8g (Battery excluded)
Dimension63 × 63 × 14 mm
Installation3M Tape Mounting, Desktop
Approvals
RegulatoryCE, FCC
EnvironmentalRoHS

Documents

WS303 Datasheet

Firmware & SDK Download
