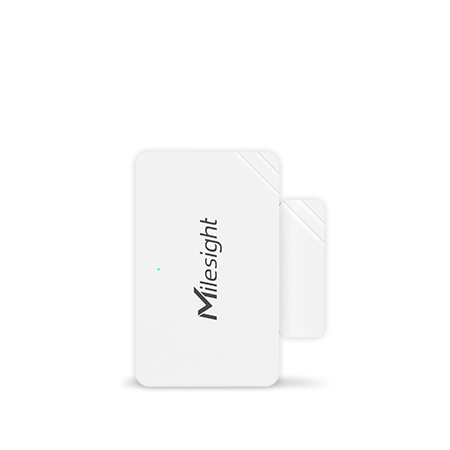

Magnetic Contact Switch

Safeguard Your Space with Ease



Long-Lasting Battery Life of 4-7 Years

Simplified NFC-Based Configuration

Safeguard Against Unexpected Entry

Wire-Free and Effortless Installation

Passage People Counting in A Cost-Effective Way

With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you track foot traffic in a cost-effective way.

Industry-Proven Temperature & Humidity Sensor

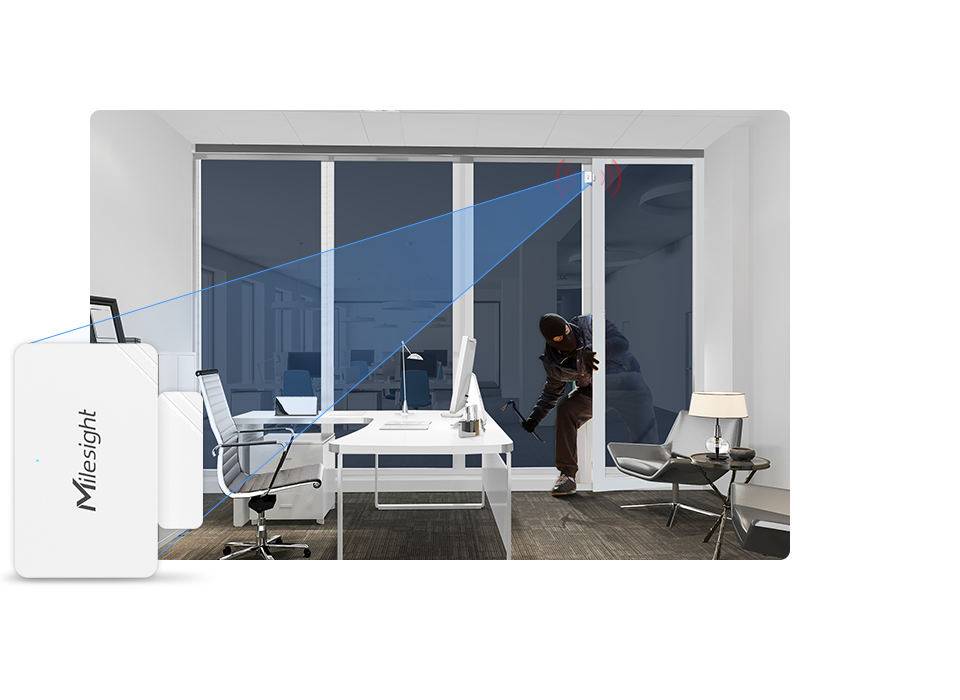

Trusted Sentinel for Every Door and Window

WS301 offers dependable security monitoring for doors and windows by detecting opening and closing events, effectively alerting against intrusion or unauthorized entry

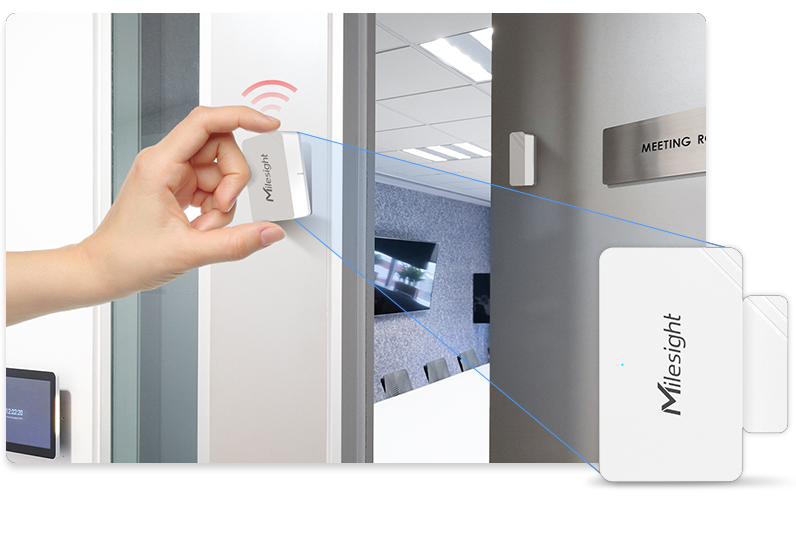

Uncompromising Security with Tamper Detection

With its advanced tamper detection functionality, the WS301 promptly alerts administrators to any attempts to dismount the device, ensuring enhanced security

Stay Powered Up for Longer

WS301 offers over 4 years of service life without the need for battery replacement



Maximize Convenience with Minimal Size

WS301 is a compact and versatile device that can be effortlessly installed on a wide range of doors and windows, providing unparalleled convenience

Smart Restroom Solution

To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas

High Compatibility: compliant with standard LoRaWAN® gateways and network servers

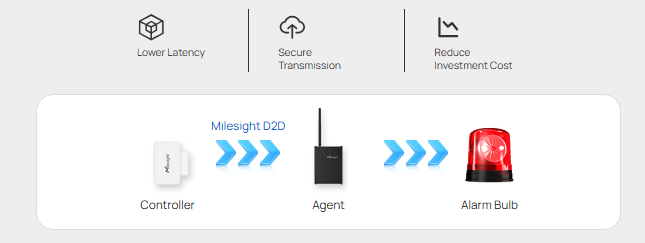

Milesight D2D Communication

Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway

Related Products

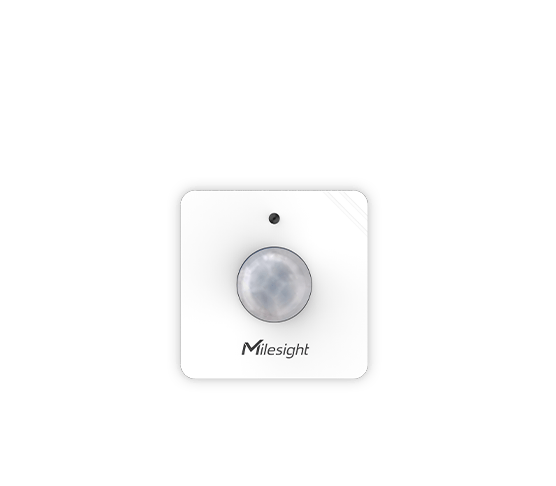

WS202

PIR & Light Sensor

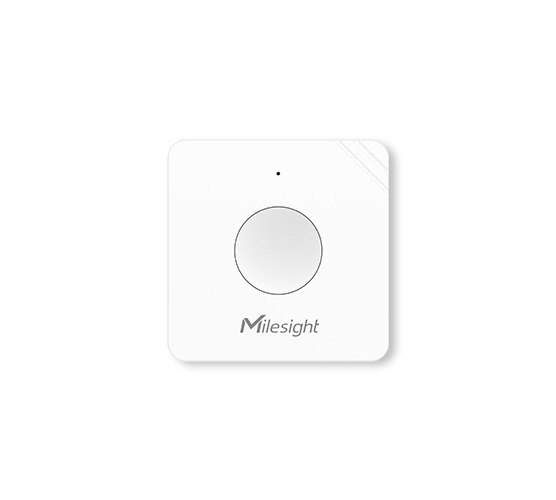

WS101

Smart Button

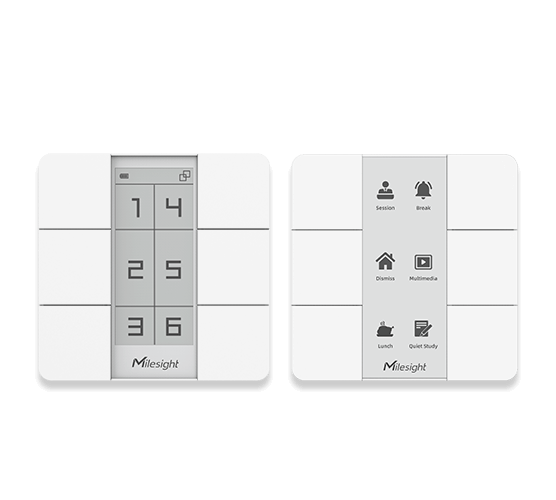

WS156

Smart Scene Panel

Wireless Transmission
TechnologyLoRaWAN®, Milesight D2D
AntennaInternal Antenna
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923
Tx Power16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm @300bps
ModeOTAA/ABP Class A
Measurement
Detection Distance10-15 mm
Others
Button1 × Reset Button (Internal), 1 × Tampering Button
LED Indicator1 × Status/Alarm Indicator
Software
ConfigurationNFC Configuration via Mobile App
Advanced FeaturesMilesight D2D Controller, Tamper Alarm, Open/Close Status Alarm
Physical Characteristics
Power Supply1 × 1200 mAh ER14250 Li-SOCl2 Battery
Battery Life* (1080 min interval + 30 triggers per day, 25°C)Around 6.8 Years (SF7, EU868)
Around 4.2 Years (SF10, EU868)
Around 6.8 Years (SF7, US915)
Around 3.5 Years (SF10, US915)
Operating Temperature-20°C to +60°C
Relative Humidity≤90% (non-condensing)
Ingress ProtectionIP20
ColorWhite
WeightSensor: 27.9g (Battery Included)
Magnet: 4.1g
DimensionSensor: 50.5 × 31 × 18.5 mm (1.99 × 1.22 × 0.73 in)
Magnet: 30 × 13.5 × 10 mm (1.18 × 0.53 × 0.39 in)
InstallationOn the flat surfaces with screws or 3M tapes
Approvals
RegulatoryCE, FCC, Telec, LoRaWAN® Certified, ISED
EnvironmentalRoHS

Documents

ws301 Datasheet

Payload Decoder
